Tongue & Groove 3/4"

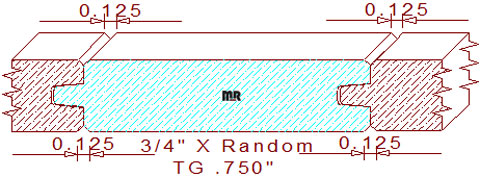

This 3/4" micro bevel tongue & groove measures .750" thickness, enabling the detail to be milled out of four-quarter lumber, and widths are machined to any desired size within the parameters of the machinery used to cut the pattern. The profile comprises a 5/16" wide by 1/4" tall tongue & groove with a 1/16" forty-five-degree chamfer on both side edges of each profile; there is a .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of finished milled lumber are joined, they create a 1/8" wide by 1/16" deep v-groove on both face sides of the merged boards.

We offer a few other profiles with the same 1/8" v-groove but with different inner dimensions for your review and consideration, t & g .750" - 30, t & g .750" - 61, t & g .750" - 62, t & g .750" - 63 and t & g .750" - 77.
