Baseboard 7-1/4" - 37
Baseboard 7-1/4" - 37

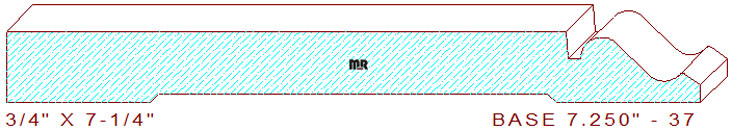

This attractive 7-1/4" - 37 base moulding measures 7.250" wide by .750" thickness, allowing the pattern to be milled out of four-quarter lumber. The beautifully common profile composes a 5-7/8" wide horizontal line with a 9/32" deep vertical step on the top center. It's attached to a 1/8" wide sunk fillet that transitions into a deep downsloping two tangent radius cyma reversa with a 1/4" wide splay faced chamfered edge, leaving a 3/16" thickness dimension on the right side of the design. We offer a similar profile in the same width but 3/16" removed from the thickness for your review and consideration,
baseboard 7.500" - 5. With this profile, you're able to match with an 11/16" thick door casing with a 1/8" thickness offset when installed.
We offer some alternative base cap profiles that will reduce knife steel and lumber cost. Instead of having to grind cutters for this entire profile, you may want to review and consider a few of these patterns to add on top of a piece of S4S (surfaced four sides) wood; base cap 1.375" - 6, base cap 1.375" - 12 and base cap 1.375" - 17.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.625
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
