Trim Moulding 4" - 1

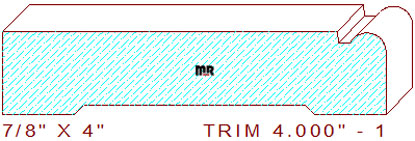

This door and window trim moulding 4" - 1 measures 4.000" wide by .875" thickness, requiring the use of five quarter lumber for milling on an industrial style moulder. The embellishing profile is composed of a 3-1/2" wide straight flat line on top, attached to a 1/8" wide by 1/8" deep sunk fillet that merges with a 3/8" wide semicircular bead on the right side of the design, the bead is recessed below the surface by .020" for sanding if needed. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Do you realize how important proper tool balance is to your current molding operation? Find out more on how critical it is to have perfectly balanced knives, screws, gibs in the cutter head and the problems they create if you neglect to focus on these simple task. Protect your current investment of woodworking machinery, your clients will appreciate your disciplined approach in molding manufacturing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .375" (top knives) & .093" (bottom cutters.)
