Shiplap Moulding 8-5/8" - 2

Shiplap Moulding 8-5/8" - 2

Shiplap Moulding 8-5/8" - 2

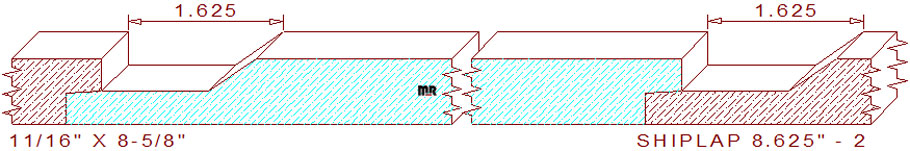

This 1-5/8" channel shiplap siding moulding 8-5/8" - 2 measures 8.625" wide by .687" thickness, enabling the detail to be cut from four quarter lumber. The useful profile is composed of a 6-5/8" wide straight flat line in the center, attached to a 1/2" wide by 21/32" deep 34.47 degree angled line that transitions the thickness to 21/32" in the center, joined to a 1-1/8" wide line segment and a 3/8" wide five degree tapered line that fits into the rabbet on the opposite side. When two pieces of milled lumber are joined together they create a 1-5/8" wide by 21/32" deep tapered channel, the exposed face coverage dimension for installation purposes becomes 8-1/4" wide. We offer a few alternative profiles in the same width but with different sized channels for your review and consideration, shiplap siding 8.625" - 3, shiplap siding 8.625" - 4 and shiplap siding 8.625" - 6.

Weinig's light blue colored ceramic grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Also review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when manufacturing cutters.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .390" (top knives.)

Thickness = .687" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
