Crown Moulding 8-1/16"

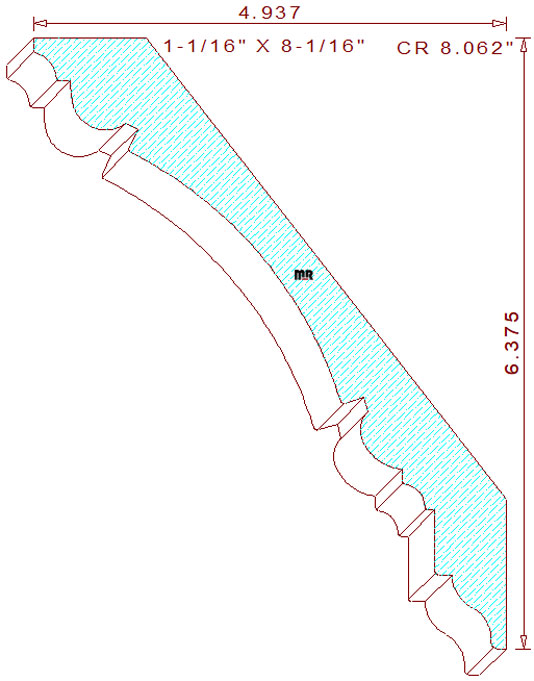

This gorgeous crown molding 8-1/16" measures 8.062" width by 1.062" thickness, necessitating the use of five quarter lumber for machining on an industrial molder. The substantially sized supporting profile contains a wide range of elegant geometrical shapes, including vertical and horizontal fillets, cavetto's, ogee, thumb-nail shaped convex beads, and splay face sunk fillets. All these beautiful shapes come together, forming one of the more distinguished crown molding available for your lovely home. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 6-3/8" tall with a projection of 4-15/16" across the top.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Three high points in the pattern layout were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.062" / Depth of Cut = .607" (top knives).

Thickness = 1.062" / Depth of Cut = .726" (right blades) & 1.234" (left cutters).
