Crown Moulding 8" - 8

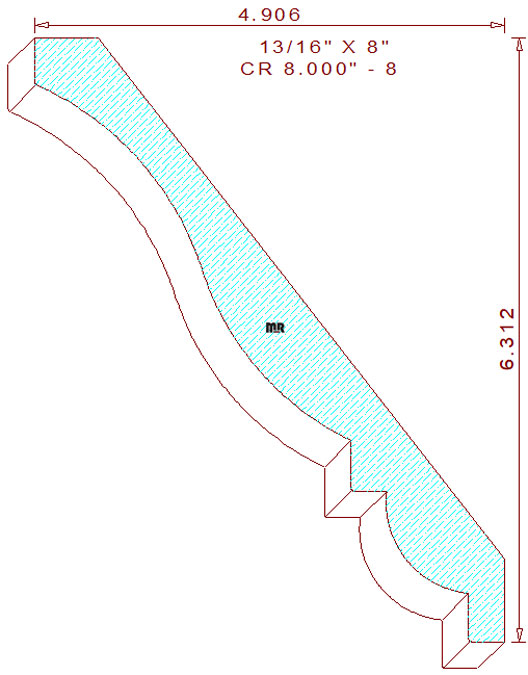

This large crown moulding 8" - 8 measures 8.000" wide by .812" thickness. The stylish profile is comprised of a two tangent radius cyma recta in the center flanked by a 1/2" tall vertical line on top and a 17/32" vertical line below, connected to a 1" radius ovolo with a 3/8" wide horizontal line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 6-5/16" tall with a projection of 4-29/32" wide. Three high points in the detail were deliberately positioned on the same plane and the large radiuses are below the points by .015". These specialized design features will assure excellent hold down conditions while milling this detail, and eliminate any unsightly burnish marks that me be caused by the pressure element, providing the pressure shoe is parallel to the machine's bed plates.

We provide the cut steel size on all our template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 8.000" / Depth of Cut = .397" (top knives).

Thickness = .812" / Depth of Cut = .406" (right blades) & .681" (left knives).
