Crown Moulding 7-13/16" - 5

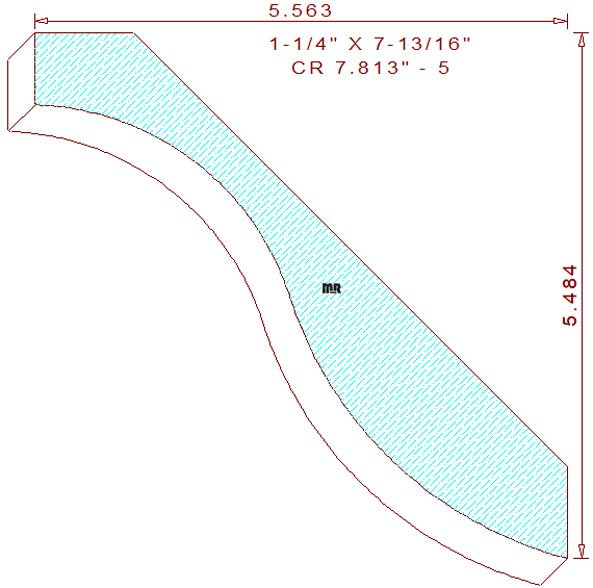

This large crown moulding 7-13/16" - 5 measures 7.813" wide by 1.250" thickness. The graceful profile is comprised of a 3/4" tall vertical line at the top, connected to a 2-7/8" radius cove tangent off of a 4-1/8" radius arc creating a cyma recta design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 5-31/64" tall with a projection of 5-9/16" wide. Two high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.

Do you realize how important proper tool balance is to your current moulding operation? Find out more on how critical it is to have balanced knives, screws and gibs in the cutter head and the problems they create if you neglect to focus on these simple task.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 7.813" / Depth of Cut = .775" (top knives).

Thickness = 1.250" / Depth of Cut = .678" (right blades) & .735" (left knives).
