Crown Moulding 6-1/2" - 4

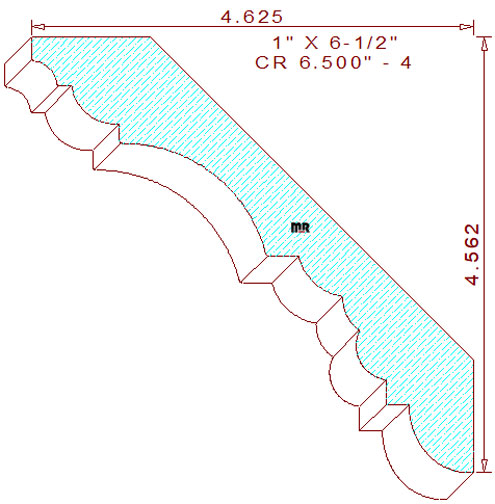

This fabulous crown molding 6-1/2" - 4 measures 6.500" wide by 1.000" thickness, requiring the use of a 6-3/4" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The profile contains a 17/64" cove flanked by vertical and horizontal line segments on the top left. The concave semicircle connects to a 31/64" ovolo bordered by short lines with a 1-17/32 cove in the center. The remaining portion consists of three cascading downward convex arcs merged with protruding perpendicular lines and an elliptical-shaped convex arc on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles also lock in the positioned height at 4-9/16" tall with a 4-5/8" projection across the top. We offer a small family of this type of crown in different size widths for your review and consideration, crown 3.437" - 14, crown 4.156" - 8, and crown 4.375" - 20.

Mirror Reflections has over thirty-five years experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities; you will be pleasantly impressed with our services.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.500" / Depth of Cut = .545" (top knives).

Thickness = 1.000" / Depth of cut = .833" (right blades) & .783" (left cutters).
