Crown 6" - 3

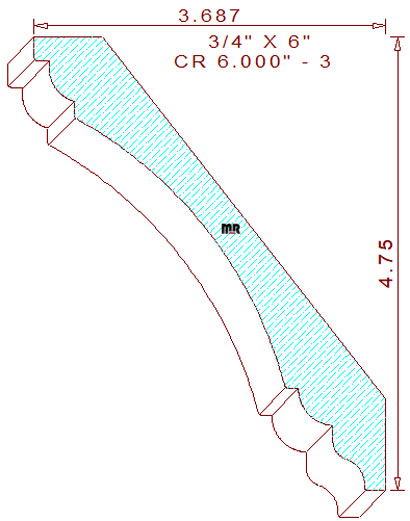

This distinguished crown moulding 6" - 3 measures 6.000" wide by .750" thickness, allowing the detail to be milled sprung (laying horizontally flat) from four quarter lumber. The fancy profile is composed of a 1/4" tall by 5/32" wide squared lines at the top, connected to a 23/64" ovolo with a 3/16" vertical line that joins to a 4-1/2" cove in the center, attached to a 9/64" horizontal line and a 3/8" ovolo with a two tangent radius ogee and a 7/32" wide flat line at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 4-3/4" tall with a projection of 3-11/16" wide. We offer a three and four inch version of this design for your review and consideration, crown molding 3.000" - 24 and crown molding 4.000" - 9.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Four high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, as long as the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .350" (top knives.)

Thickness = .750" / Depth of Cut = .442" (right blades) & .755" (left cutters.)
