Crown 5-5/16" - 7

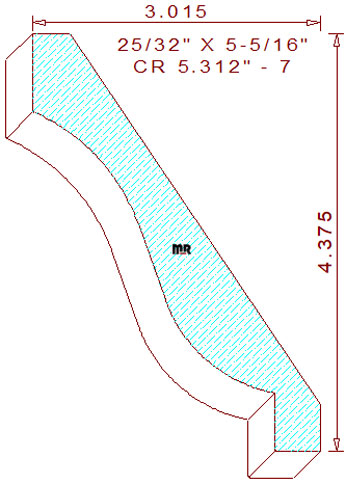

This 5-5/16" - 7 cyma recta crown mould measures 5.312" wide by .781" thickness, enabling the detail to be milled from four-quarter lumber. The decorative profile is composed of a 13/16" tall vertical line at the top, connected to an elegant two tangent radius french curve in the center, attached to a 39/64" tall by 31/64" squared lines at the bottom of the pattern. The spring angles are fixed at thirty-four and fifty-six degrees, these specific back bevels set the installed height at 4-3/8" tall with a projection of 3-1/64" wide. We offer another pattern with similar design characteristics for your consideration, crown 5.312" - 1.
