Crown 5" - 14

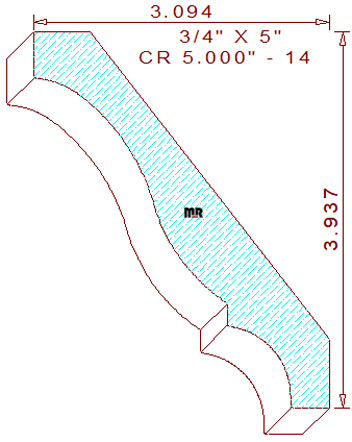

This standard 5" - 14 colonial crown mould measures 5.000" wide by .750" thickness. The classic profile is comprised of a 31/64" tall vertical line on top, attached to a two tangent radius cyma recta in the center, joined to a 1/4" tall vertical line with a 47/64" cove and a 13/32" horizontal segment at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-15/16" tall with a projection of 3-3/32" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Three high points in the design were intentionally positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.
