Crown 4-3/4" - 5

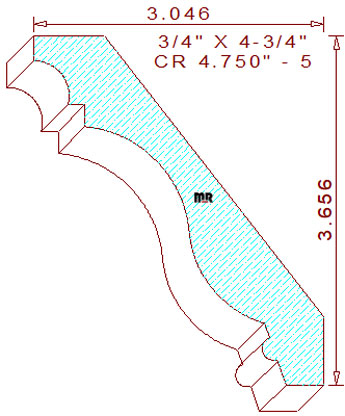

This colonial 4-3/4" - 5 crown mould measures 4.750" wide by .750" thickness. The elegant profile is comprised of a 9/32" tall vertical line joined to an 11/32" radius cove with a 3/16" tall, notched fillet in the upper portion, joined to a two tangent radius cyma recta in the center, with a 1/4" wide half round bead flanked by angled lines and a 3/8" broad area at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-21/32" tall with a projection of 3-3/64" wide. Four high points in the detail were intentionally positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates. We have many patterns in this same style in different widths and thicknesses for your review and consideration, here are just a few to look at, crown 4.750", crown 4.750" - 2, crown 4.813" - 3, crown 5.500" - 46 and crown 5.750" - 16, alter the search parameters if you want to view other width size options.
