Crown 4-13/16" - 3

Crown 4-13/16" - 3

Crown 4-13/16" - 3

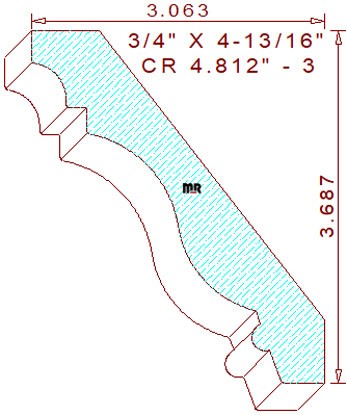

This distinctive 4-13/16" - 3 crown mould measures 4.812" wide by .750" thickness, enabling the detail to be machined from four-quarter lumber. The stylish terminating profile comprises an 11/32" vertical line with a 3/8" cove on top, joined to a 7/32" wide by 9/32" tall notch that connects to a graceful two tangent radius cyma recta in the center, attached to a teardrop shaped half round bead flanked by angled line segments with a 7/16" horizontal segment at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-11/16" tall with a projection of 3-1/16" wide. We offer a few other similar profiles in different widths for your review and consideration, crown 4.750", crown 4.750" - 2, crown 4.750" - 5, crown 5.500" - 46 and crown 5.750" - 16.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.410
Top Cutter Head
Width: 4.813
Depth of Cut: 0.455
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$332.28
Not Needed
Total:
$665.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$354.53
Not Needed
Total:
$706.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$376.78
Not Needed
Total:
$747.78
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
