Crown 4-3/4" - 28

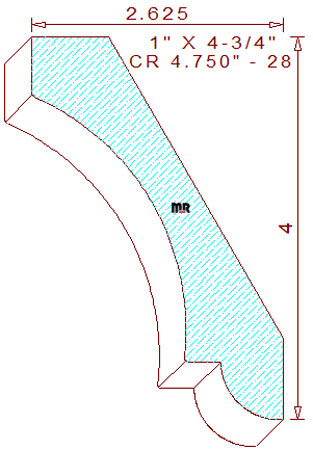

This beautifying 4-3/4" - 28 crown mould measures 4.777" wide by 1.000" thickness, requiring the pattern to be milled out of five-quarter lumber. The attractive terminating profile is composed of a 5/8” tall vertical line segment on the top left, connected to a 2-21/32” radius concave semicircular arc in the center, joined to a 3/8” horizontal segment and a 21/32” wide quarter round bead on the bottom right side of the design. The spring angles are fixed at thirty and sixty degrees, these precise back bevels keep the inner sections of the profile parallel to the wall and ceiling as well as set the installed height at 4" tall with a projection of 2-5/8" wide.

Ever wonder why certain wood species have tear-out problems during milling? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save substantial money when investing in this style of tooling.
