Crown 4-1/2" - 13

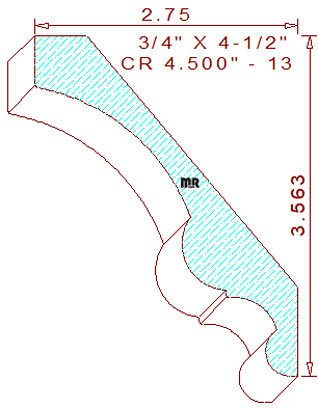

This fancy 4-1/2" - 13 crown mould measures 4.500" wide by .750" thickness. The elegant profile is comprised of a 2-1/8" radius cove in the center, attached to a 35/64" tall vertical line at the top. The lower portion of the design consists of a 27/64" wide half circle connected to a small vertical fillet, joined to a 15/32" radius cove with a 17/64" radius arc at the bottom of the pattern. The spring angles are fixed at forty and fifty degrees, these specific back bevels set the installed height at 5-9/16" tall, with a projection of 2-3/4" wide. We have a small family of similar style profiles with different widths, height, and projections; you may want to review and consider crown 3.250" - 10, crown 4.625" - 9, crown 4.625" - 10," and crown 6.500" - 3.
