Crown 4-9/32" - 5

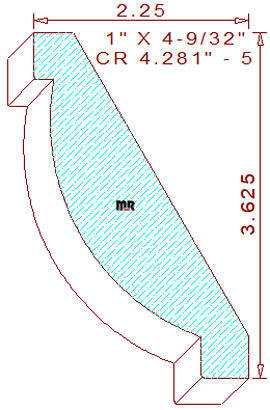

This 4-9/32" - 5 Greek echinus crown mould measures 4.264" width by 1.000" thickness, requiring a 4-1/2" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The ovolo-shaped terminating profile comprises a 1/2" tall by 7/32" broad perpendicular lines on the top left. The squared lines connect to a 2-7/16" convex arc in the center with a 7/16" by 1/2" squared line on the design's bottom right side. The spring angles are fixed at thirty and sixty degrees, these precise back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-5/8" tall with a 2-1/4" projection across the top. We offer another slightly smaller pattern with similar design characteristics for your review and consideration, crown 4.250" - 67.
