Crown 3-7/8" - 12

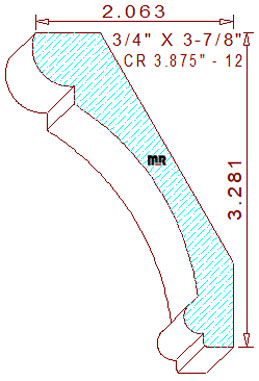

This concave 3-7/8" - 12 crown mould measures 3.875" wide by .750" thickness, allowing the pattern to be machined sprung (laying horizontally flat during the milling process) from four-quarter lumber. The scooped-out profile is composed of a 13/32" quarter circle with a 3/16" vertical line on top, attached to a 2-13/16" cove with a teardrop-shaped bead and a 9/64" tall by 5/16" broad squared lines at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 3-9/32" tall with a projection of 2-1/16" wide. We offer a similar shaped design in a slightly smaller size for your review and consideration, crown 3.813" - 5.
