Crown 3-13/16" - 5

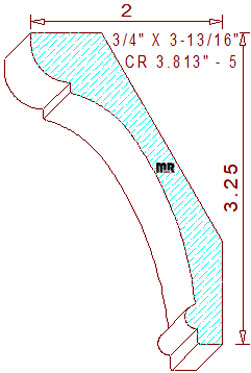

This beautiful mid-sized 3-13/16" - 5 crown mould measures 3.812" wide by .750" thickness, enabling the pattern to be machined from four-quarter lumber laying horizontally flat during the milling process. The concave-shaped profile is composed of a 27/64" quarter circle with a 7/64" vertical line on top, attached to a two tangent radius elliptical shaped cove, with a teardrop bead and a 5/32" tall by 17/64" wide squared lines at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 3-1/4" tall with a projection of 2" wide. We offer a similar shaped design in a slightly larger size for your review and consideration, crown 3.875" - 12.
