Cove Moulding 3-1/8" - 1

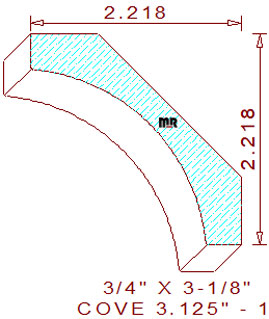

This cove molding 3-1/8" - 1, measures 3.125" width by .750" thickness. Permitting the pattern to be machined sprung (laying horizontally flat), using four-quarter lumber on a commercial-grade molder. The lovely symmetrical profile contains a two-inch radius cove in the center, flanked by a 3/8" tall vertical fillet on the top left, and a 3/8" wide horizontal line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 2-7/32" tall with a projection of 2-7/32" across the top.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Three high points in the pattern layout are deliberately positioned on the same plane; our disciplined design features will assure excellent hold down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.125" / Depth of Cut = .466" (top knives).

Thickness = .750" / Depth of Cut = .501" (right blades) & .501" (left cutters).
