Trim Moulding 4-1/2" - 3

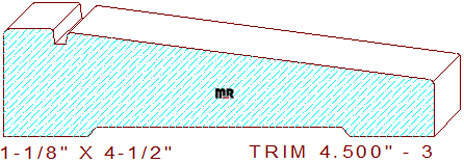

This beveled trim moulding 4-1/2" - 3 measures 4.500" wide by 1.125" thickness, allowing the detail to be milled from either five or six quarter lumber. The beveled profile is composed of a 17/32" wide raised fillet with eased edges on the left, attached to a 5/32" deep by 1/8" wide sunk fillet that transitions into a seven and one half degree angled line with a 1/16" rounded edge, leaving a 19/32" thickness dimension on the right side of the pattern. We offer a smaller 2-1/2" version of this profile for your review and consideration, trim molding 2.500" - 3. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.500" / Depth of Cut = .733" (top knives) & .093" (bottom cutters.)
