Tongue & Groove 3/4" - 58
Tongue & Groove 3/4" - 58

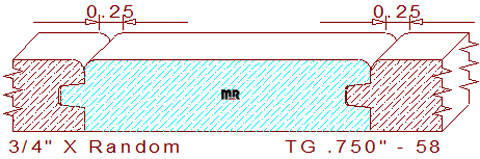

This 3/4" - 58 radius edge siding measures .750" thickness, permitting the pattern to be machined out of four-quarter lumber. The widths are adjustable to any desired size within the parameters of the moulder/shaper used to mill the design. The profile consists of a 1/4" wide by 1/4" deep tongue and groove joint with a 1/8" radius edge on the top face of each side, as well as a .006" void in the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity. We offer a similar profile with a nail groove and a 1/32" void on the bottom for your review and consideration,
tongue & groove .750" - 24, this detail is more for a flooring application versa a siding installation.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.528
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
