Tongue & Groove 5/8" - 20
Tongue & Groove 5/8" - 20

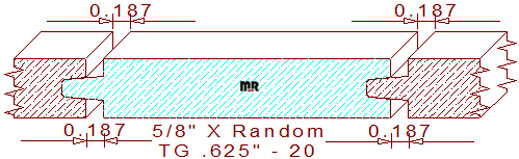

This 5/8" - 20 shadow gap tongue & groove siding measures .625" thickness, allowing the use of four-quarter lumber for machining. The width is adjustable to any desired size within the parameters of the molder/shaper utilized to mill the pattern. The profile comprises a 1/4" tall by .437" wide tongue and a 15/64" wide by .250" deep groove. When joining two pieces of milled lumber, they create a 3/16" wide by 3/16" deep gap on two face sides of the merged boards. For seasonal changes in relative humidity, we have a built-in .008" void in the joint for expansion and contraction. We offer a 3/4" thick version of this detail with a thicker tongue & groove for your review and consideration,
t & g .750" - 48.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.250
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.437
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
