Tongue & Groove 5" - 3

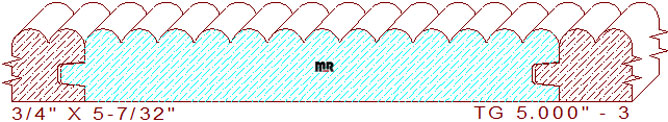

This reeded 5" - 3 tongue & groove door paneling measures 5.205" width by .750" thickness, requiring a 5-1/4" wide blank of four-quarter lumber for milling sprung on an industrial-grade molder. The beaded profile contains thirteen 3/16" radius semicircular half-round arcs divided by twelve tiny rounded fillets. The right and left portion of the pattern is a simple 1/4" wide by 1/4" tall tongue and groove with .014" void in the joint when assembled, this allows for seasonal changes in relative humidity. The profile is used in the manufacturing of interior & exterior doors.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level. This commentary will ensure prolonged use of your machinery while maintaining consistent perfection when manufacturing the cutters.
