Tongue & Groove 4-1/2" - 8

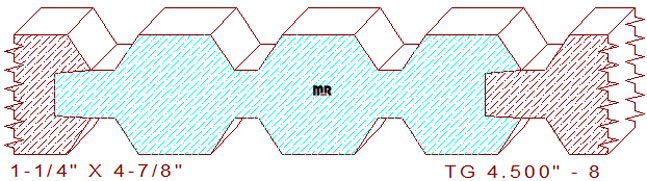

This 4-1/2" - 8 tongue & groove semi-octagonal door panel measures 4.875" width by 1.250" thickness. The overall size allows for a 5-1/8" wide blank of six-quarter lumber for milling on a commercial moulder. The custom profile contains a 3/8" wide by 1/2" tall tongue & groove; the top radial cutter head on the moulder controls the void in the joined area for seasonal changes in relative humidity. The detail comprises three semi-octagonal sections divided by three 1/4" broad sunk fillets. When two pieces of milled lumber merge, they create a 4-1/2" face coverage on both sides of the boards.

Mirror Reflections provides the cut steel size on all their template & knife designs, this vital information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.
