Plinth Block 4-3/8" - 1

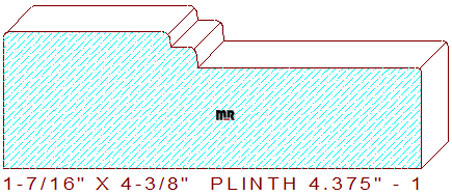

This embellishing plinth block 4-3/8 - 1" measures 4.375" width by 1.437" thickness, enabling the use of a 4-5/8" wide blank of six or eight-quarter lumber for machining on an industrial-grade molder. The decorative profile gets used in conjunction with casing 4.000" - 149, it contains a 1-3/4" wide by 5/32" tall raised fillet with a 1/16" eased outer and a 3/32" rolled inner edge on the top left. The elevated portion connects to a 9/32" wide by 7/32" vertical step, joined to a 2-11/32" broad line segment with a 1/16" eased edge, leaving a 1-1/16" thickness on the design's right side.

Ever notice why some moldings look better than other trim patterns in homes, offices, and older buildings. You may want to review our article on knife marks per inch. Read about how machine feed rates and rpm of cutter heads can directly determine the quality of the products you produce. Following or exceeding industry standards will allow your company to lead the way in molding artisanship.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.375" / Depth of Cut = .593" (top knives).
