Fluted Moulding 4" - 10

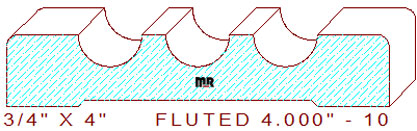

This attractive fluted casing moulding 4" - 10 measures 4.000' wide by .750" thickness. The symmetrical profile is composed of a three 43/64" wide by 9/32" deep concave semicircles divided by two 1/4" wide line segments in the center, and a 3/4" wide horizontal line with a 1/8" eased edge on each side of the pattern. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)
