Fluted Moulding 3" - 16

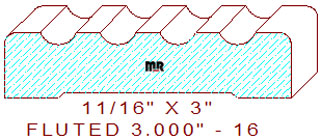

This fluted casing moulding 3" - 16 measures 3.000" wide by .687" thickness. The symmetrical profile is composed of four 3/8" wide by 1/8" deep concave semicircles divided by 1/4" wide horizontal lines in the middle, joined to a 3/8" wide horizontal line with a 1/8" radius on each side edge. You may want to browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful fluted pattern. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with reasonable pricing.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)
