Crown Moulding 6-29/32" - 1

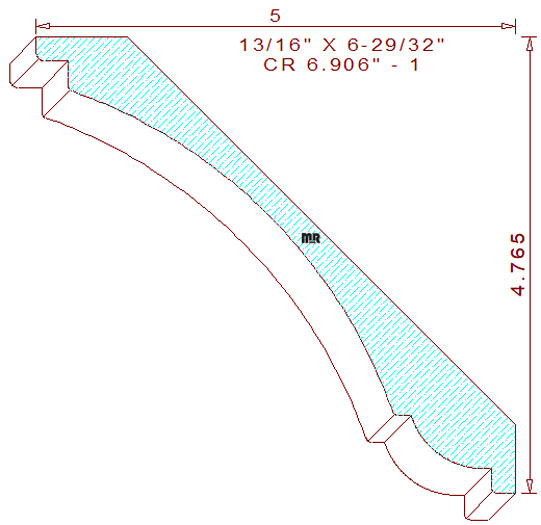

This beautiful crown moulding 6-29/32" - 1 measures 6.906" wide by .812" thickness. The lovely profile is comprised of a 5-1/2" radius cove in the center, connected to a 1/4" wide by 5/16" tall notch with a 1/4" vertical line on top, the lower portion consists of a 25/32" radius ovolo attached to a 1/4" wide horizontal line at the bottom of the pattern. We have a smaller version of this design available for your review and consideration, crown moulding 4.875" - 4.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 4-49/64" tall with a projection of 5" wide. Three high points in the design were intentionally positioned on the same plane, this will assure superior hold down conditions while milling the pattern on an industrial moulder providing the pressure shoe is parallel to the machine's bed plates.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.906" / Depth of Cut = .541" (top knives).

Thickness = .813" / Depth of Cut = .672" (right blades) & .506" (left cutters).
