Crown Moulding 6-1/2" - 22

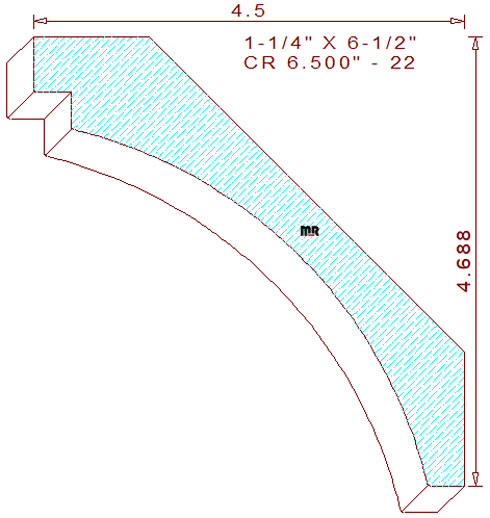

This beautiful cove style crown moulding 6-1/2" - 22 measures 6.500" wide by 1.250" thickness, requiring six quarter lumber to mill this pattern on an industrial moulder. The designer profile is comprised of a 35/64" tall vertical line joined to a 25/64" wide by 25/64" tall notch at the top of the detail, connected to a 5" radius cavetto in the center with a 3/8" wide horizontal line at the bottom of the design.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 4-11/16" tall with a projection of 4-1/2" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Three high points in the detail were deliberately positioned on the same plane, our design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 6.500" / Depth of Cut = .739" (top knives).

Thickness = 1.250" / Depth of Cut = .992" (right blades) & .856" (left cutters), the same acrylic template can be used to make both side cutters.
