Crown 6-1/2" - 14
Crown 6-1/2" - 14

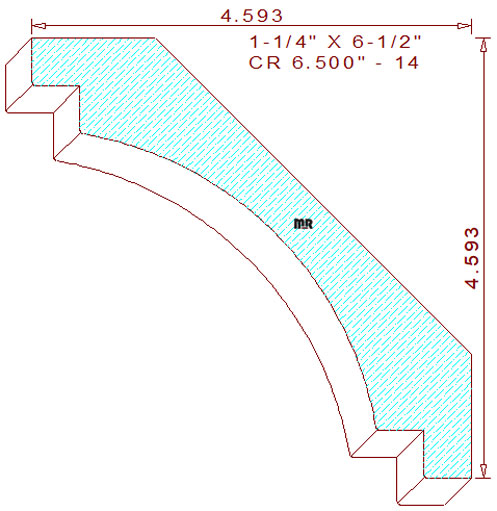

This concave 6-1/2" - 14 crown mould measures 6.500" wide by 1.250" thickness, allowing the detail to be milled from six-quarter lumber. The stylish profile composes a 3-3/4" radius cove in the middle, attached to a one-half inch wide by one half inch tall notch, joined with a 1/2" tall and 1/2" broad segment on the top and bottom of the design. The spring angles are fixed at
forty-five degrees, these devoted back bevels set the installed height and projection at an identical dimension of 4-19/32" tall and wide. We offer this profile design with a shallower cove for your review and consideration,
crown 6.500" - 15, this pattern can be milled from five quarter lumber which will save money in manufacturing cost.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.913
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.913
Top Cutter Head
Width: 6.500
Depth of Cut: 0.696
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.00
(Template not needed)
