Crown 6-1/4" - 1

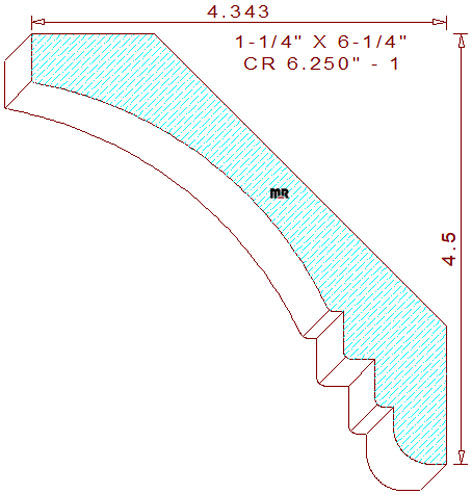

This concave crown moulding 6-1/4" - 1 measures 6.250" wide by 1.250" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of six quarter lumber. The embellished terminating profile is composed of a 1/2" tall vertical line segment on the top left, connected to a 4-9/32" radius cove in the center, attached to a series of three cascading downward steps with 3/32" eased edges with a 25/64" quarter round bead at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these explicit back cutters keep the inner profile parallel to the wall and ceiling as well as set the installed height at 4-1/2" tall with a projection of 4-11/32" wide.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty year’s experience in woodworking, and a former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.250" / Depth of Cut = .705" (top knives.)

Thickness = 1.250" / Depth of Cut = .908" (right blades) & 1.019" (left cutters.)
