Crown 6-1/4"

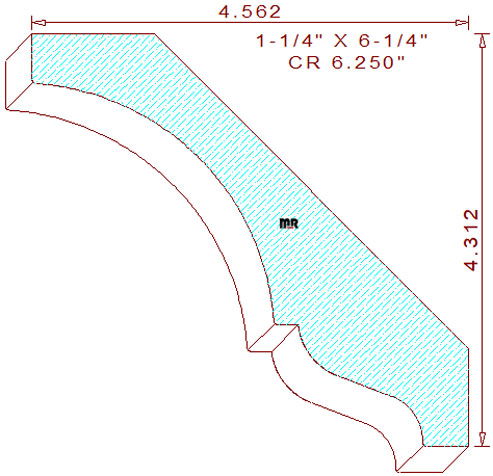

This designer crown moulding 6-1/4" measures 6.275" wide by 1.250" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of six quarter lumber. The beautiful profile is composed of a 1/2" tall vertical line segment on the top left, connected to a 2-11/16" radius cove with a 1/4" wide horizontal line in the center, attached to a 41/64" radius arc tangent to a down-sloping angled line that merges to a 1/2" radius concave semicircle with a 31/64" wide flat line on the bottom of the pattern. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as setting the installed height at 4-5/16" tall with a projection of 4-9/16" wide.

Mirror Reflections has over thirty years experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.250" / Depth of Cut = .667" (top knives.)

Thickness = 1.250" / Depth of Cut = .901" (right blades) & .725" (left cutters.)
