Crown 6-1/8" - 5

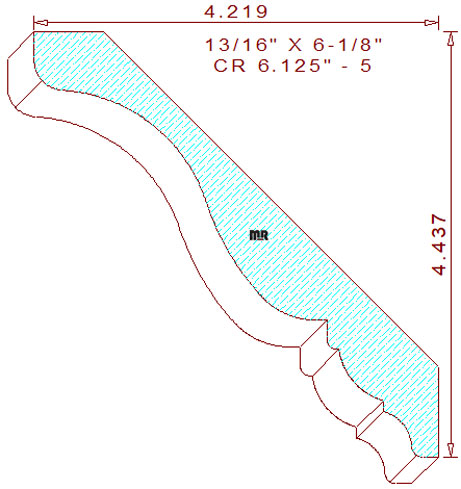

This crown moulding 6-1/8" measures 6.125" wide by .813" thickness with a depth of cut of .514" on the right vertical profile cutters, a .664" depth of cut on the left set of knives, and a .501" depth of cut on the top horizontal moulding blades. We have a smaller similar style pattern with different width, height and projection you may want to review and consider, crown moulding 3.250".

The elegant profile is comprised of a three tangent radius cyma recta in the middle of the design, connected to a 5/16" radius with a 1/2" tall vertical line on the top. The lower portion of the design consists of a stepped fillet attached to a 21/32" radius arc, joined to a 25/64" radius cove flanked by a vertical and horizontal line on the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 4-3/8" tall with a projection of 4-7/32" wide. Two high points in the design were intentionally positioned on the same plane, our disciplined design features will assure superior hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.
