Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 5-15/16" - 1

Crown 5-15/16" - 1

Crown 5-15/16" - 1

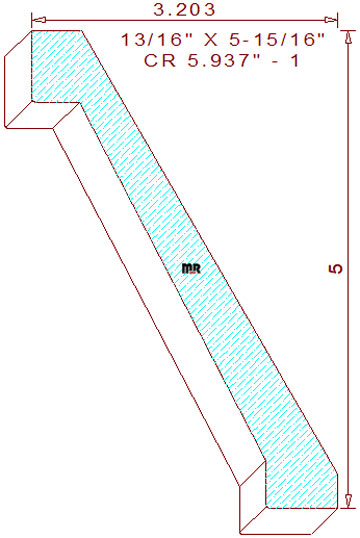

This beveled 5-15/16" - 1 crown mould measures 5.927" wide by .812" thickness, enabling the pattern to be machined out of four-quarter lumber. The shaker-style terminating profile composes a 3/4" tall by 1/2" wide perpendicular lines on the top left. Joined to a sixty-two and a half degree angled line that transitions into a 1/2" tall by 3/4" wide squared lines on the bottom right side of the design. The spring angles are fixed at thirty and sixty degrees, these precise back bevels keep the inner sections of the profile parallel to the wall and ceiling as well as set the installed height at 5" tall with a projection of 3-13/64" wide.<

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.451
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.117
Top Cutter Head
Width: 5.937
Depth of Cut: 0.708
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$404.10
Not Needed
Total:
$727.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$430.85
Not Needed
Total:
$773.35
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$457.59
Not Needed
Total:
$819.09
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
