Crown 5-1/2" - 10

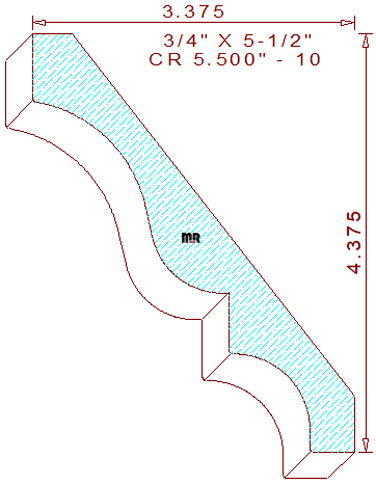

This classic 5-1/2" - 10 colonial crown mould measures 5.525" width by .750" thickness, allowing the use of a 5-3/4" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The lovely terminating profile contains a 23/32" tall vertical segment on the top left. The short line connects to a 1-7/16" concave semicircle tangent to a 3/4" radius convex arc in the center. The lower portion of the pattern retains a 41/64" tall line attached to a 51/64" cove, with a 15/32" horizontal line on the design's bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-3/8" tall with a projection of 3-3/8" across the top. We offer an alternative pattern with similar design characteristics in the same width for your review and consideration, crown 5.500" - 2.
