Crown 5-7/32" - 3

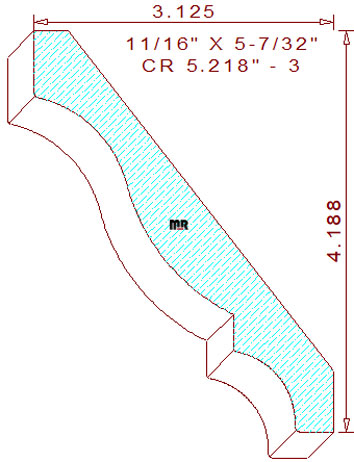

This traditional 5-7/32" - 3 crown mould measures 5.224" wide by .687" thickness, enabling milling out of four-quarter lumber. The colonial terminating profile is comprised of an 11/16" tall vertical fillet on the top left, connected to a 1-1/4" concave semicircle tangent off of a 2-1/8" convex arc creating the smooth flowing cyma recta in the center, attached to a 3/8" vertical line with a 3/4" cove and a 13/32" flat line on the bottom right side of the design. The fixed spring angles are thirty-eight and fifty-two degrees, these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-3/16" tall with a projection of 3-1/8" across the top. We offer an alternative profile in the same width but different spring angles for review and consideration, crown 5.218" - 5.
