Crown 4-3/4" - 20

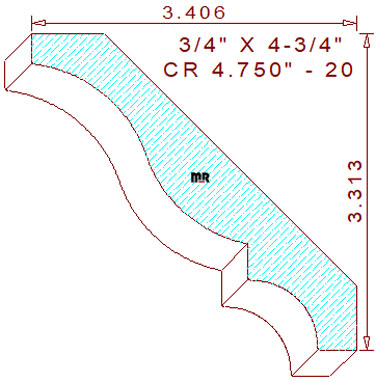

This standard 4-3/4" - 20 crown mould measures 4.750" wide by .750" thickness. This is one of the most widely used profiles in the millwork industry. It is comprised of a 5/16" vertical line on top, connected to a two tangent radius cyma recta in the center, joined to a 3/8" tall vertical line with an 11/16" radius cove and a 13/32" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-5/16" tall with a projection of 3-13/32" wide. Three high points in the detail were intentionally positioned on the same plane; our specialized design features will assure excellent hold-down conditions while milling, providing the machines pressure shoe is parallel to the bed plates. We have a similar profile in this width with different degree back angles for your review and consideration, crown 4.750" - 11, for other width options alter the search parameters to any desired size.
