Crown 4-3/4" - 12

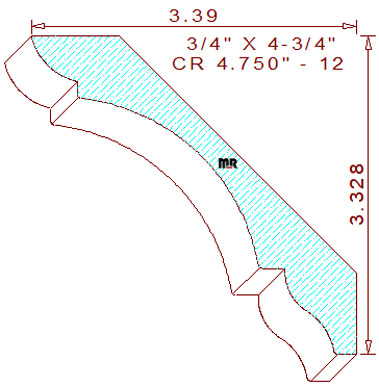

This elegant 4-3/4" - 12 crown mould measures 4.750" wide by .750" thickness. The lovely profile is composed of a 41/64" quarter round bead attached to an 11/64" vertical line in the upper portion, connected to a 2-1/8" cove in the center, joined to a 9/32" horizontal line that transitions into a two tangent radius ogee with a 15/64" broad area at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-21/64" tall with a projection of 3-25/64" wide. Two high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.
