Crown 4-5/8" - 15

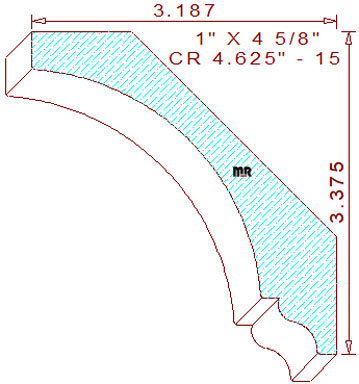

This incurved 4-5/8" - 15 crown mould measures 4.641" width by 1.000" thickness, requiring the use of five-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The terminating concave detail contains a 13/32" vertical line segment on the top left. The fillet connects to a 2-9/16" cove with a 3/16" horizontal flat section merged with a 3/16" radius convex arc tangent to a 5/16" concave semicircle, creating the ogee and a 3/16" broad flat line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-3/8" tall with a projection of 3-3/16" across the top.

Proper tool balance is significant to your milling operation. Read how critical it is to have balanced knives, screws, and gibs in the cutter head. There is also information on the problems it can create if you neglect to focus on this simple task.
