Crown 4-1/2" - 5

Crown 4-1/2" - 5

Crown 4-1/2" - 5

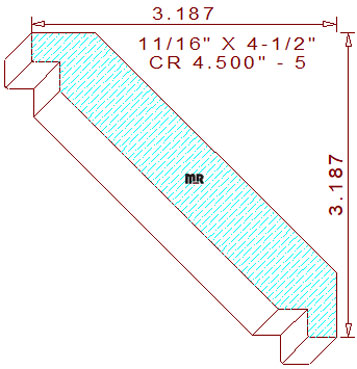

This shaker 4-1/2" - 5 crown mould measures 4.500" wide by .687" thickness. The symmetrical beveled profile is comprised of a 19/64" tall vertical line on top, connected to a 19/64" wide by 19/64" tall notch that transitions into a straight beveled line in the center, attached to a 19/64" wide by 19/64" tall notch with a 19/64" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3-3/16" tall and wide. We have another shaker style crown in this same width for your review and consideration, crown molding 4.500" - 26.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your machinery & tool room.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.475
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.475
Top Cutter Head
Width: 4.500
Depth of Cut: 0.305
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$316.00
Not Needed
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$337.00
Not Needed
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$358.00
Not Needed
Total:
$686.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
