Crown 4-1/2" - 26

Crown 4-1/2" - 26

Crown 4-1/2" - 26

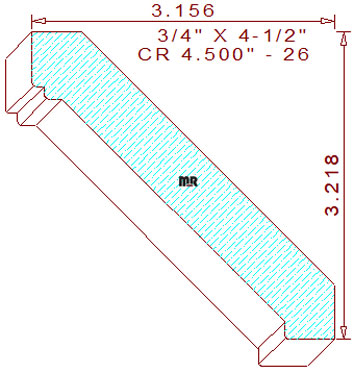

This beveled 4-1/2" - 26 crown mould measures 4.500" wide by .750" thickness. The shaker style profile is comprised of a 9/16" tall vertical line on top, connected to a 1/8" wide by 1/8" tall notch with a 3/16" horizontal line that transitions into a straight beveled line in the center, attached to a 3/16" tall by 33/64" squared line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height 3-7/32" tall with a projection of 3-5/32" wide. We have another shaker crown in this same width for your review and consideration, crown 4.500" - 5.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.362
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.402
Top Cutter Head
Width: 4.500
Depth of Cut: 0.458
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$316.00
Not Needed
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$337.00
Not Needed
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$358.00
Not Needed
Total:
$686.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
