Crown 4-7/16" - 11

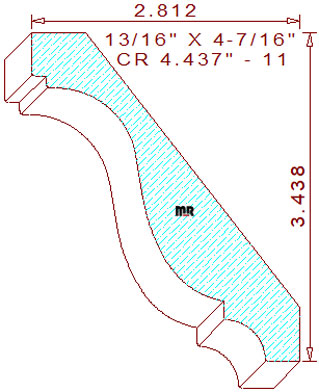

This lovely 4-7/16" - 11 crown mould measures 4.440" width by .812" thickness, allowing the use of a 4-11/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The graceful terminating profile contains a 29/64" tall vertical fillet on the top left. The short line connects to a 1/8" tall by 5/32" wide perpendicular notch, merged with a sleek two tangent radius cyma recta in the center. The lower portion consists of a 3/16" vertical line segment attached to a 7/16" cove with a 23/64" wide horizontal fillet on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-7/16" tall with a projection of 2-13/16" across the top. We offer a more significant size pattern with similar design characteristics for your review and consideration, crown 5.500" - 27.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years experience in woodworking and a former Weinig field service technician.
