Crown 4-3/8" - 16

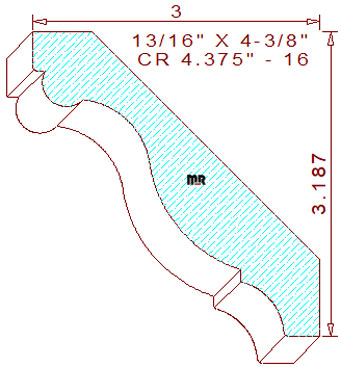

This enchanting 4-3/8" - 16 crown mould measures 4.375" width by .812" thickness, requiring a 4-5/8" blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The innovative terminating profile comprises 13/32" tall by 1/8" broad perpendicular lines joined to a 1/2" half-circle in the upper left. The half-round bead connects to a lovely two tangent radius cyma recta with a 1/8" vertical fillet in the center. The lower portion retains a 13/32" cove with a 3/8" flat line segment on the bottom right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angles lock in the positioned height at 3-3/16" tall with a 3" projection across the top.

Mirror Reflections provides the cut steel size on all our template & knife designs, this important information allows you to purchase the correct width of steel size before you start knife grinding procedures, just one more example of our enthusiasm for the overall success of your woodworking business.
