Crown 4-9/32"
Crown 4-9/32"

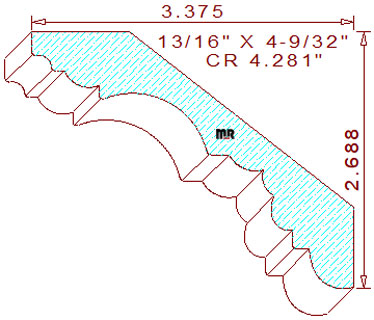

This distinguished 4-9/32" crown mould measures 4.303" width by .812" thickness, requiring a 4-1/2" blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The ornate terminating profile comprises a series of convex arcs of various sizes, two coves, and a set of perpendicular lines in the lower right corner of the design. The fixed spring angles are set at
thirty-eight and
fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-11/16" tall with a 3-3/8" projection across the top. We offer another pattern with similar design characteristics in a slightly larger size for your review and consideration:
crown 4.375" - 20.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.657
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.632
Top Cutter Head
Width: 4.281
Depth of Cut: 0.535
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
