Crown 4-1/4" - 8

Crown 4-1/4" - 8

Crown 4-1/4" - 8

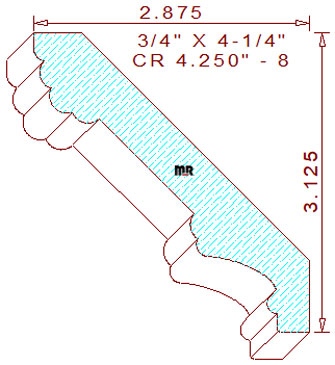

This exquisite 4-1/4" - 8 crown mould measures 4.243" width by .750" thickness, allowing a 4-1/2" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The lovely supporting profile comprises three convex arcs joined together, creating a clover shape with a 1/4" radius quarter round on the top left. The consecutive beads connect to a 1-13/32" splay-faced center; the remaining portion consists of a 3/16" quarter round joined to an in-swooping s-shaped curvature with a decorative 1/8" teardrop and a set of perpendicular lines on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face sides of the design parallel to the wall and ceiling after installation. These specific angles lock in the final height at 3-1/8" tall with a 2-7/8" projection across the top. We offer a small family of designs to complement this pattern, baseboard 5.250" - 101, door/window casing 3.500" - 214 and chair rail 3.000" - 41.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.352
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.529
Top Cutter Head
Width: 4.250
Depth of Cut: 0.491
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$293.00
Not Needed
Total:
$573.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$313.00
Not Needed
Total:
$612.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$333.00
Not Needed
Total:
$651.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
