Baseboard 5-1/4" - 101
Baseboard 5-1/4" - 101

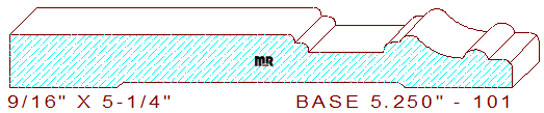

This prestigious 5-1/4" - 101 baseboard measures 5.250" width by .563" thickness, allowing a 5-1/2" wide blank of four-quarter lumber for milling on industrial equipment. The attractive profile contains a 2-31/32" broad line segment with a 5/64" rolled inner edge on the top left. The rollover connects to another 5/64" quarter round and a 25/32" sunk fillet in the center. The remaining section consists of a downsloping s-shaped curvature joined to a tiny half-circle with a 1/4" wide fillet and a 3/32" eased edge on the design's right side. We offer a small family of different profiles to complement this design pattern,
crown mould 4.250" - 8, door/window casing 3.500" - 214 and
chair rail 3.000" - 41.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
