Crown 4-1/4" - 50

Crown 4-1/4" - 50

Crown 4-1/4" - 50

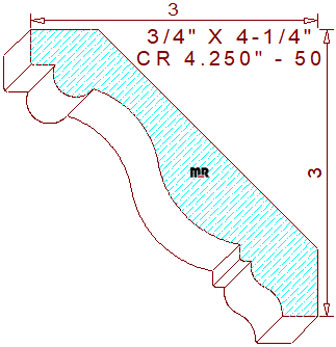

This elegant 4-1/4" - 50 crown mould measures 4.250" width by .750" thickness enabling the use of four-quarter lumber for machining laying horizontally flat on an industrial-grade molder. The custom terminating profile contains a 3/8" tall by 1/4" broad perpendicular lines joined to a 1/4" radius half-circle on the top left. They are merged with a one-inch concave semicircle tangent to a 1-1/16" convex arc, creating the beautiful cyma recta in the center, connected to an 11/64" tall by 1/8" complete squared lines and a two tangent radius cyma reversa with a 3/8" broad line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at three inches tall with a projection of three inches across the top.

Mirror Reflections has over thirty-five years' experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.502
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.502
Top Cutter Head
Width: 4.250
Depth of Cut: 0.381
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$293.00
Not Needed
Total:
$573.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$313.00
Not Needed
Total:
$612.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$333.00
Not Needed
Total:
$651.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
