Crown 4-1/4" - 40

Crown 4-1/4" - 40

Crown 4-1/4" - 40

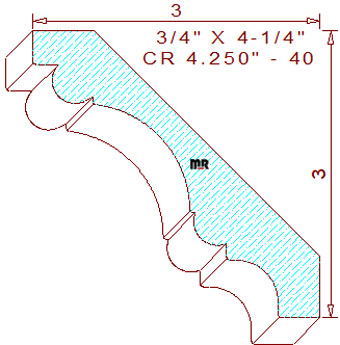

This designer 4-1/4" - 40 crown mould measures 4.250" wide by .750" thickness. The ornate profile is comprised of an 11/32" tall vertical line on top, connected to a 15/64" radius ovolo that transitions into a 1-1/8" cavetto in the center, joined to a 1/4" ovolo with a 7/16" cove and a 7/16" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3" tall and wide. We offer a small cluster of this lovely style in different widths for your review and consideration, crown 5.187" - 9, crown 5.625" - 9, and crown 6.000" -12.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.455
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.455
Top Cutter Head
Width: 4.250
Depth of Cut: 0.449
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$293.00
Not Needed
Total:
$573.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$313.00
Not Needed
Total:
$612.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$333.00
Not Needed
Total:
$651.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
