Crown 4-1/4" - 4

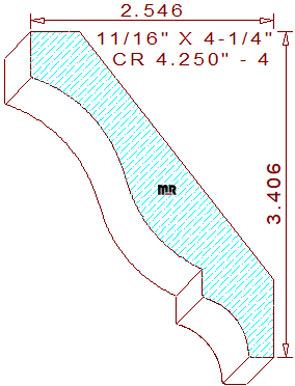

This common 4-1/4" - 4 crown mould measures 4.250" wide by .687" thickness. The every-day profile is comprised of a 19/32" tall vertical line on top, connected to a two tangent radius cyma recta in the center, attached to a 5/16" tall vertical line and a 5/8" radius cove with a 1/4" broad segment at the bottom of the design. We have many similar profiles in the same width for your review and consideration; here is just one of them crown 4.000" - 42.

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-13/32" tall with a projection of 2-35/64" wide. Two high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.
