Crown 4" - 49
Crown 4" - 49

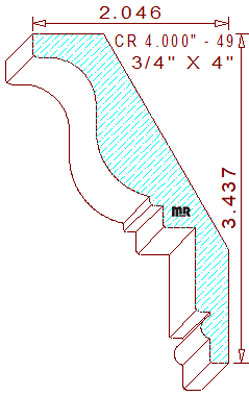

This distinctive 4" - 49 crown mould measures 4.000" wide by .750" thickness. The stylish profile comprises a two tangent radius cyma recta attached to a 1/4" tall vertical fillet on top. The lower portion of the design consists of two stepped fillets joined to a rabbeted area for dentil or rope mould. It's connected to a small half-round bead flanked by vertical lines with a 3/16" broad line at the bottom. The spring angles are fixed at
thirty and
sixty degrees, these devoted back bevels set the installed height at 3-7/16" tall with a projection of 2-3/64" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.648
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.594
Top Cutter Head
Width: 4.000
Depth of Cut: 0.563
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
